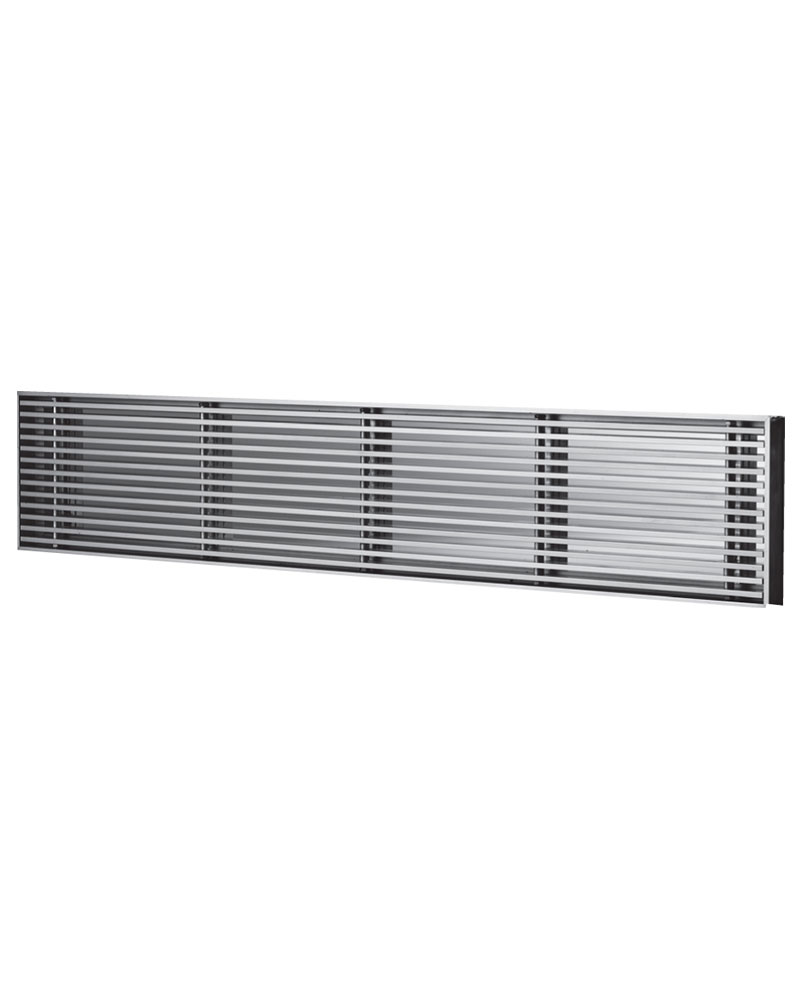

Economy Linear Bar Floor Grilles
Description

For supply or extract, having a single set of fixed linear blades with 0° and 15° deflection options. Suitable for wall, cill or ceiling mounted.

Construction

From extruded aluminium sections, frame 1.6mm thick blades either 4mm or 6mm thick. Hairline mitres mechanically held. Optional OBD is of extruded aluminium.

Size and Weight

Height from 50mm to 300mm in 25mm increments. Widths or lengths from 100mm to 3000mm in a single unit. Longer lengths can be supplied as multiple units.

Grille only 11.5kg/m2, Grille and OBD 19.5kg/m2.

Free area 4mm blades, approximately 70%.

Free area 6mm blades, approximately 55%.

Economy Linear Bar Floor Grilles

Grille range

High Security Grille product image
Security Grille

Security Grille

Stainless steel type complies with Home office recommendations for Anti-ligature applications. For supply, air transfer/extract applications.
